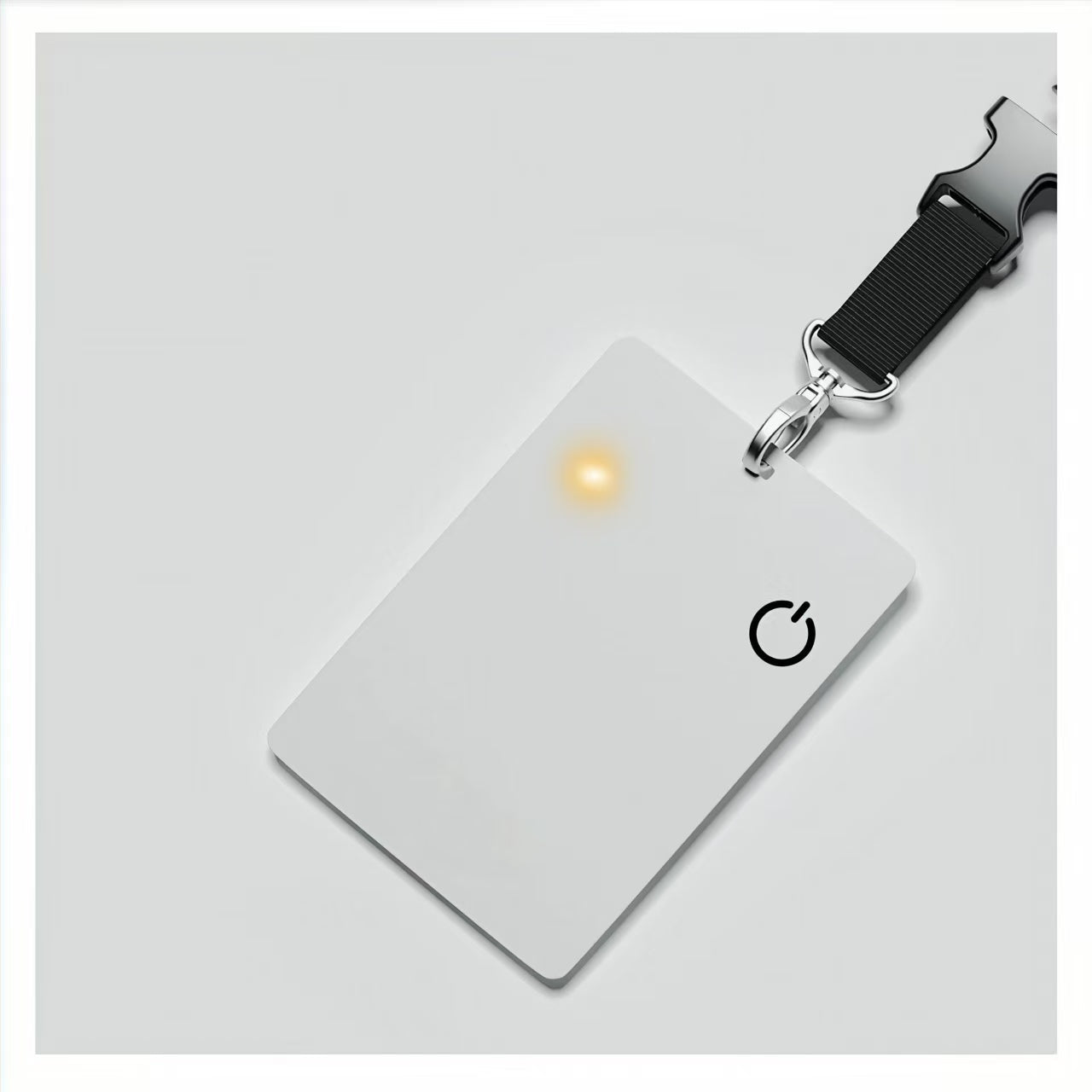

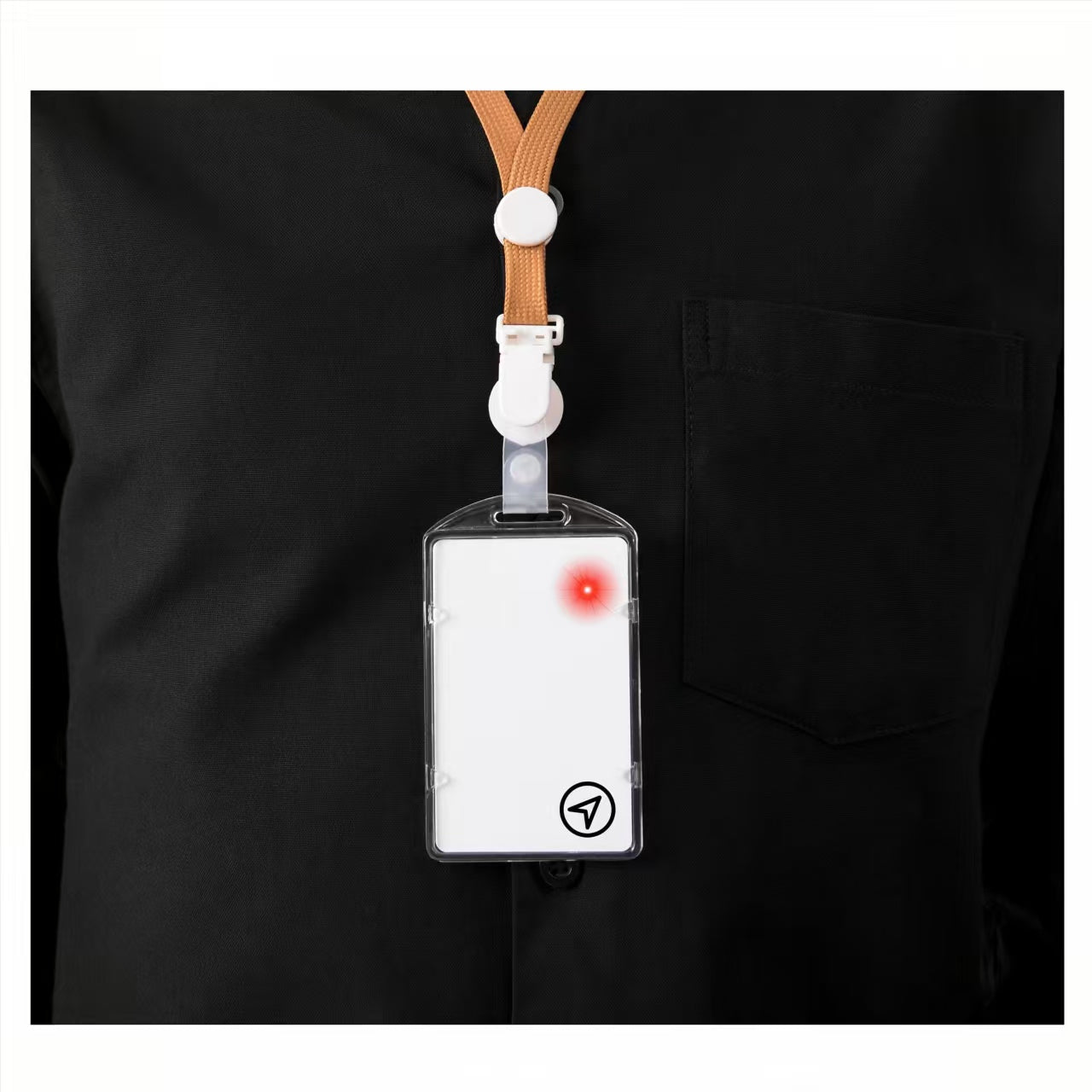

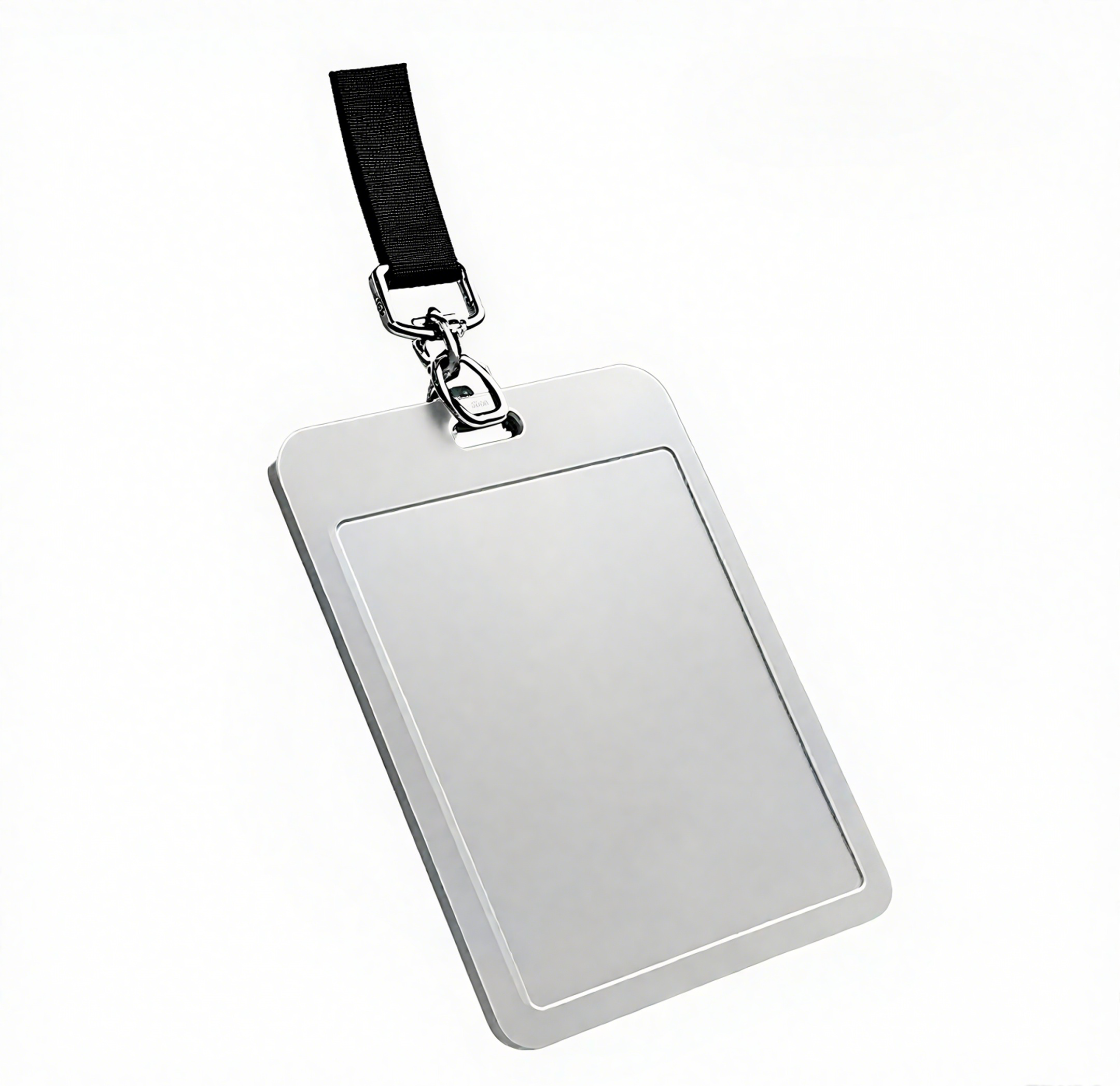

Smart Staff ID Badge — BLE Beacon & RFID Personnel Tracking Card

The Smart Staff ID Badge by Union Smart integrates Bluetooth Low Energy (BLE) beacon technology with optional contactless RFID/NFC credentials into a lightweight, wearable employee card. Engineered for enterprise office complexes, healthcare campuses, smart factories, and educational facilities, it enables hands-free attendance logging, real-time indoor positioning (RTLS), workspace optimization, and physical door access control.

As a specialized OEM/ODM smart card and IoT hardware manufacturer, Union Smart offers complete factory-direct customization — from UUID/Major/Minor parameter pre-flashing and RF antenna tuning to custom housing design, SOS panic button integration, and full-color corporate branding.

📐 Engineering & Technical Specifications

• Product Type: Wearable Active BLE Beacon & Multi-Tech Smart ID Badge
• Standard Dimensions: Standard CR80 profile (85.6 mm × 54 mm), custom badge holders, badge clips, or lanyard attachments
• Wireless Beacon Protocols: Bluetooth Low Energy (BLE 5.0 / 5.2 / 5.3); fully compatible with Apple iBeacon and Google Eddystone standards
• Optional RFID / NFC Multi-Technology: Dual-frequency hybrid integration available — 13.56 MHz HF (MIFARE, NTAG, DESFire) or 125 kHz LF (EM4100, TK4100, HID compatible) for seamless turnstile and door access
• Transmission Range: Configurable from 1 meter up to 100 meters (open area) via adjustable broadcast power levels (TX Power: -40 dBm to +4 dBm)
• Broadcasting Frequency / Interval: Configurable from 100 ms to 10,000 ms to balance real-time tracking accuracy and battery life
• Power Supply & Battery: Ultra-low-power sleep management with sealed high-capacity lithium battery or rechargeable options
• Functional Hardware Options: Integrated SOS duress button for lone-worker safety, 3-axis motion accelerometer, vibration motor, and LED status indicator
• Enclosure & Protection: Ultrasonic-welded ABS, Polycarbonate (PC), or durable laminated casing (IP65 / IP67 water and dust resistance available)
• Personalization & Print Craft: CMYK high-resolution employee photo printing, corporate graphics, barcode / variable QR code, laser engraving, and custom lanyard accessories

🎯 Enterprise Workplace Applications

• Automated Digital Attendance: Hands-free check-in at building turnstiles, main lobby entrances, and department zones without manual card swiping.

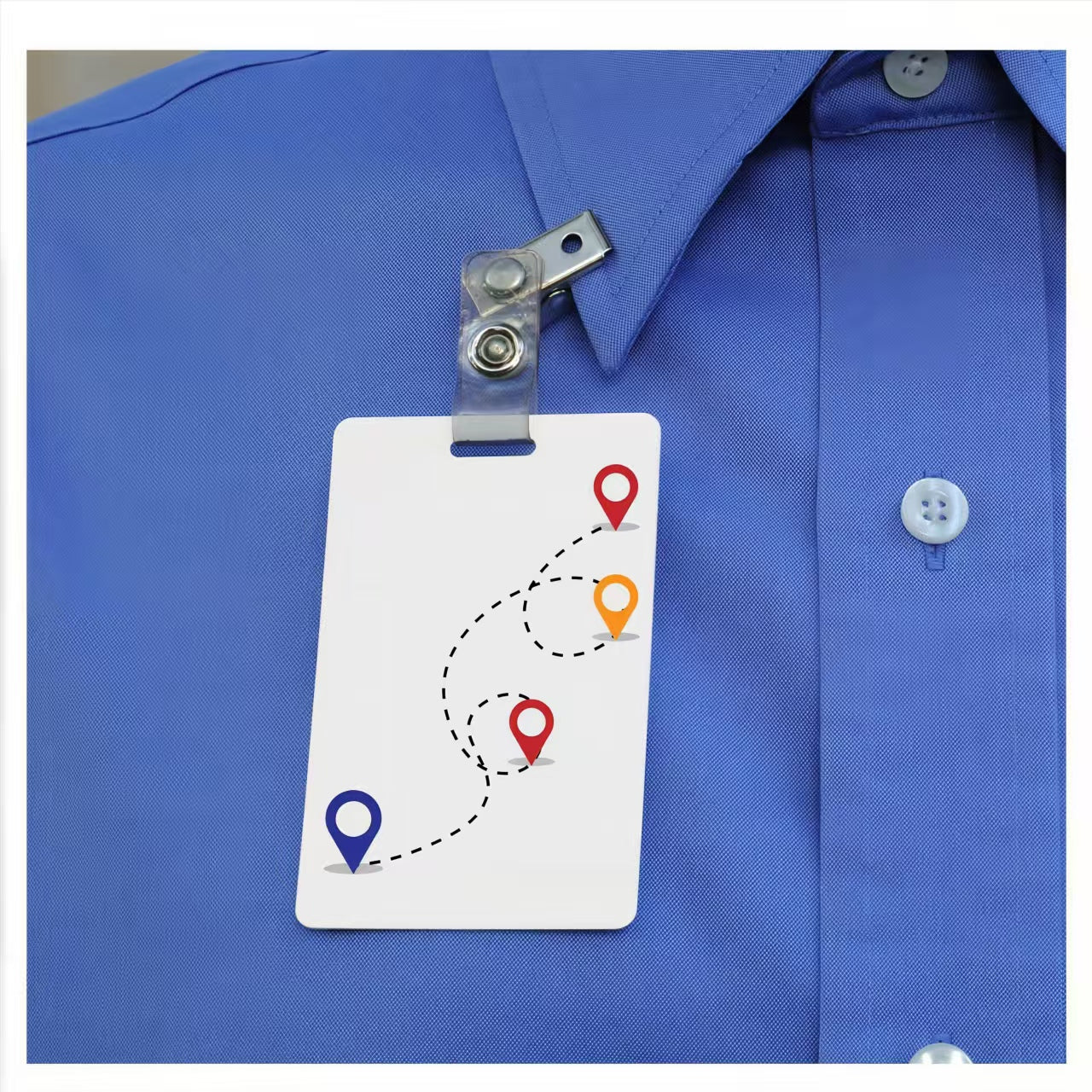

• Real-Time Location Services (RTLS) & Indoor Positioning: Coordinate with BLE gateway infrastructures to track staff and asset movement patterns across multi-story buildings.
• Desk Utilization & Space Optimization: Automate hot-desk assignments, track meeting room availability, and optimize corporate real estate costs.
• Lone Worker & Employee Safety: Instant distress signaling via the onboard SOS button, paired with rapid emergency evacuation roll-call and muster zone headcounts.
• Unified Physical Access Control: Combines active wireless beaconing with passive RFID chip technology for a single credential covering doors, elevators, and transit gates.

🏭 Factory-Direct OEM/ODM Customization

• Parameter Pre-Configuration: Batch flashing of custom UUID, Major, Minor, TX power, and broadcasting intervals directly during manufacturing.

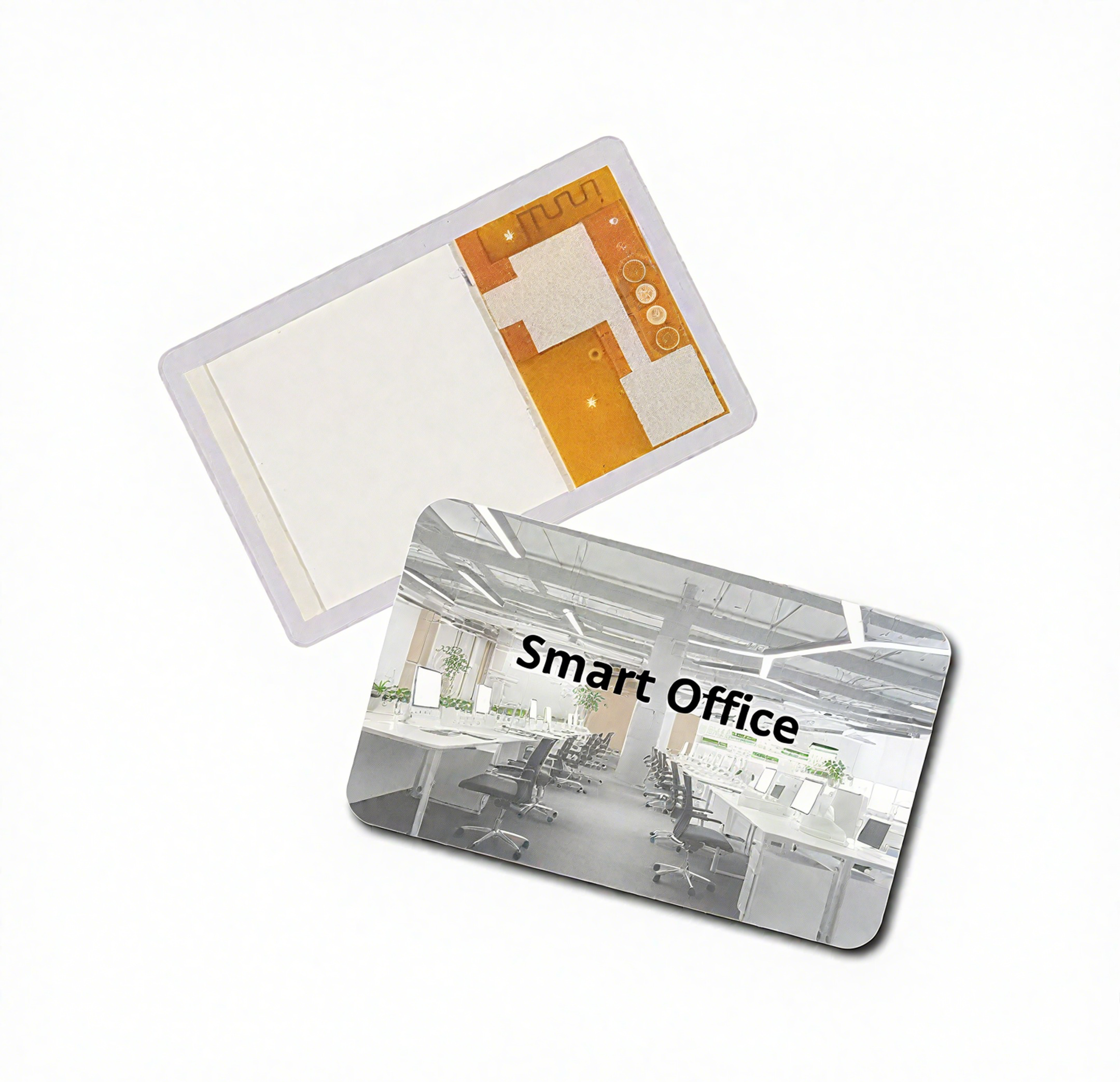

• Hardware Tailoring: Custom circuit board layout, internal antenna matching for RSSI consistency, and tailored battery capacities.
• Turnkey Surface Personalization: Industrial offset printing, UV silkscreen, employee data serialization, and secure packaging ready for enterprise deployment.

❓ Frequently Asked Questions (FAQ)

Q1. How does the BLE smart staff badge achieve indoor tracking?

The badge continuously or motion-triggered broadcasts standard BLE advertisement packets (iBeacon or Eddystone). Fixed BLE gateways or receivers in the facility measure the Received Signal Strength Indicator (RSSI) to calculate real-time badge coordinates via triangulation.

Q2. Can the badge combine active BLE tracking with passive RFID door access?

Yes. Union Smart specializes in multi-technology composite cards, embedding high-frequency (13.56 MHz) or low-frequency (125 kHz) passive RFID inlays alongside the active BLE module for single-card facility management.

Q3. Can beacon parameters be pre-configured before delivery?

Yes. We provide complete factory pre-programming including UUID, Major, Minor, device name, TX power, and broadcast interval to ensure seamless integration with your third-party RTLS software platform.

Q4. Does the badge support an emergency SOS button?

Yes. An optional tactile emergency push-button can be integrated. When pressed, the badge immediately transmits a priority alert packet to notify security personnel and software dashboards in real time.

Q5. What OEM printing and enclosure options does Union Smart support?

We provide full OEM manufacturing including custom enclosure molds, corporate logo offset printing, individual employee photo personalization, variable QR codes, and custom lanyards or clips.
