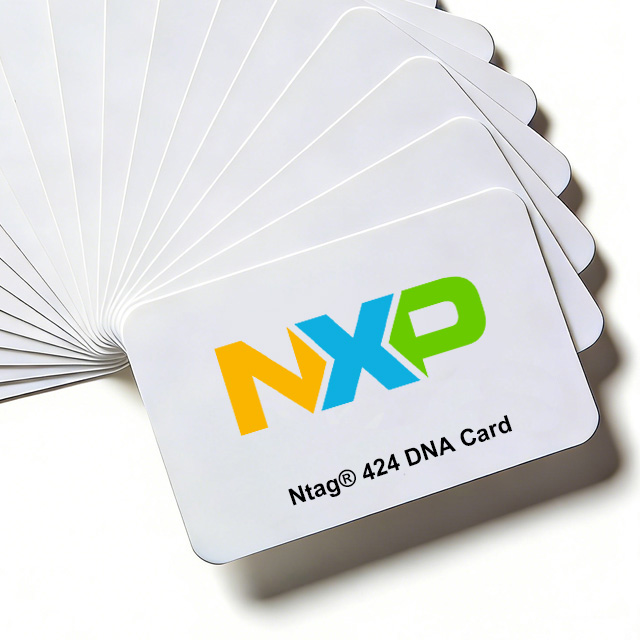

NTAG 424 DNA / DNA Tamper Card

NXP NTAG 424 DNA & DNA TagTamper Secure NFC Cards

Engineered for high-security brand protection, anti-counterfeiting, and verified access control, the NXP NTAG 424 DNA sets an industry benchmark for cryptographic NFC hardware. Operating on certified attack-resistant silicon, this next-generation NFC Forum Type 4 chip delivers robust hardware-level security, privacy protection, and automated cloud authentication.

As a specialized factory-direct OEM/ODM manufacturer, Union Smart provides complete custom production for NTAG 424 DNA and NTAG 424 DNA TagTamper cards — including custom antenna design, full-color offset printing, eco-friendly materials, and secure cryptographic key provisioning.

📐 Technical Specifications

• Product Type: High-Security Contactless NFC Smart Card / Tag
• Standard Dimensions: ISO CR80 (85.5 x 54 mm), custom die-cut dimensions available
• Card Thickness: 0.76 mm (Standard ISO), 0.84 mm, or custom thickness
• Operating Frequency: 13.56 MHz (HF / High Frequency)
• Supported Protocol: ISO/IEC 14443-A, NFC Forum Type 4 Tag
• Integrated Chip: NXP NTAG 424 DNA / NXP NTAG 424 DNA TagTamper
• Cryptographic Engine: Standard AES-128 hardware encryption engine with Secure Dynamic Messaging (SUN/SDM)
• Read Range: Up to 10 cm (depending on reader antenna geometry, field strength, and environment)
• Card Substrate Materials: Standard PVC, Recycled RPVC, Eco-friendly PLA, Polycarbonate (PC), PET, PETG, PBAT, TESLIN
• Surface Finishes: Glossy, Matte, Frosted, Soft-touch, Crystal Epoxy (Single/Double), Brushed Metallic Texture, Laser Foil
• Variable Data & Personalization: High-precision laser engraving, flat metallic foil (gold/silver/black), UV inkjet printing, embossed numbering, thermal printing, 1D/2D barcodes, variable QR codes, and pre-programmed NDEF records

🔐 Key Cryptographic & Security Features

• AES-128 Cryptographic Authentication: Employs symmetric AES-128 cryptographic algorithms to ensure private keys are securely stored on-chip and protected against unauthorized readout during normal tag operations.
• Secure Dynamic Messaging (SUN / SDM): On every tap, the chip automatically calculates a dynamic, truncated CMAC (Cipher-based Message Authentication Code) appended to the NDEF URL. This dynamic payload is validated by the enterprise verification backend, providing strong defense against cloning, copying, and replay attacks.
• Seamless Smartphone Interactivity: In standard Type 4-compatible reading architectures, users can tap with compatible NFC smartphones to trigger automated browser verification without requiring a dedicated mobile app.
• Dual-State Tamper Detection (DNA TagTamper): The TagTamper variant features an integrated tamper loop. During RF activation, the chip measures loop continuity to identify status changes (Closed 43h, Open 4Fh, or Invalid 49h). Once broken, the permanent status locks to Open, enabling irreversible physical tamper detection for security seals and luxury packaging.
• Mutual Authentication & Access Control: Supports authenticated communication channels for secure reading and writing of sensitive user memory.

🏭 OEM/ODM Factory Manufacturing Capabilities

• Factory-Direct Production: High-precision lamination, ultrasonic antenna wire-embedding, and die-cutting for consistent RF stability and durability.
• Custom Printing & Finishing: Heidelberg 4-color and 5-color offset printing, pantone color matching, selective spot UV, metallic accents, and anti-scratch coatings.
• Secure Data Initialization & Pre-Encoding: Automated AES key generation, SDM URL programming, UID/serial number mapping, and encrypted data provisioning ready for customer cloud platforms.
• Eco-Friendly Card Options: Sustainable bio-plastics (PLA, PBAT) and recycled polymers (RPVC, rPET) compliant with global environmental standards.

🎯 Target B2B Applications

• High-Security Brand Protection: Luxury goods, wine and spirits, designer apparel, cosmetics, and fine art authentication.
• Pharmaceutical & Healthcare Integrity: Medical device verification, tamper-evident packaging seals, and cold-chain compliance.
• Supply Chain & Asset Traceability: Auditable custody verification, anti-diversion tracking, and serial-level provenance.
• Authenticated Smart Packaging & Documents: Tamper-evident certificates, diplomas, warranty cards, and sealed official documents.
• Secure Access & Enterprise Memberships: High-tier VIP passes, secure closed-loop credentials, and authenticated visitor management.

❓ Frequently Asked Questions (FAQ)

Q1. What is the NXP NTAG 424 DNA chip?

The NTAG 424 DNA is a high-security NFC Forum Type 4 Tag IC featuring hardware-based AES-128 cryptographic authentication and Secure Dynamic Messaging (SDM). It is engineered specifically for brand protection, anti-counterfeiting, and verified digital interactions.

Q2. How does NTAG 424 DNA differ from standard NTAG 213, 215, or 216 chips?

Standard NTAG 21x series chips store static NDEF data that can be copied by standard NFC tools. NTAG 424 DNA integrates AES-128 encryption to generate a dynamic CMAC cryptographic signature on each tap, providing strong protection against tag cloning and replay attacks.

Q3. What is the difference between NTAG 424 DNA and NTAG 424 DNA TagTamper?

Both chips share the same cryptographic core, but the TagTamper version adds physical tamper-detection circuitry. It measures tamper loop electrical continuity during RF measurement; once opened or peeled, the chip updates its permanent status code from Close (43h) to Open (4Fh), enabling irreversible tamper verification.

Q4. What is Secure Dynamic Messaging (SUN / SDM)?

Secure Unique NFC (SUN) / Secure Dynamic Messaging (SDM) is a protocol where the chip dynamically generates an encrypted UID/counter parameter and a dynamic CMAC signature on every tap. When redirected to an enterprise verification server, the backend verifies authenticity in real time without exposing cryptographic master keys.

Q5. Do end users need a special mobile app to scan the card?

In standard web-based architectures using compatible NFC smartphones, users do not need a dedicated app. Tapping the card opens a secure browser URL with dynamic verification parameters validated directly by the cloud backend.

Q6. What OEM/ODM customization services does Union Smart offer for this card?

Union Smart provides turnkey factory services: custom card dimensions (CR80 or bespoke shapes), custom materials (RPVC, PC, PET, eco PLA), full-color offset printing, metallic foil stamping, laser engraving, secure key injection, and custom batch packaging.
